Top Linear Motion Bushing Shafts for Smooth Precision Moves

Visualize the smooth glide of a figure skater cutting across ice—every movement precise, controlled, and effortless. That’s the kind of performance you want from your linear motion bushing shafts. Whenever your equipment depends on accuracy and durability, settling for less isn’t an option. Comprehending what makes these shafts stand out can change how your machines operate, but initially, you need to know what to look for.

More Details on Our Top Picks

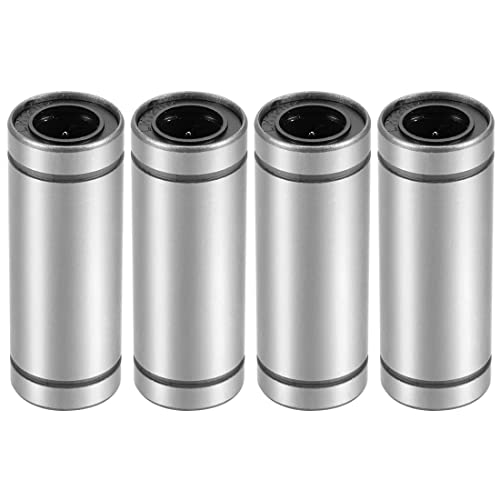

1. Linear Ball Bearings LM12LUU 12mm Bore (4 Pack)

   Durable Precision Set

   View Latest Price

   Should you need reliable linear motion with minimal friction, the Linear Ball Bearings LM12LUU 12mm Bore (4 Pack) are a perfect fit for your projects. These carbon steel bearings feature a 12mm bore and nickel plating to resist corrosion and enhance durability. Their double side rubber seals keep dirt and moisture out, ensuring smooth, low-friction movement with high rigidity. You can count on them for unlimited stroke applications at temperatures up to 80°C. Compact and easy to maintain, they’re ideal for CNC machines, 3D printers, and packaging equipment. This economical 4-pack from HiPicco offers dependable performance for precise linear motion tasks.

   • Inner Diameter (Bore Size):12mm
   • Material:Carbon steel with nickel plating
   • Seal Type / Protection:Double side rubber sealed
   • Application Compatibility:CNC, 3D printers, mechanical slides, food/packaging machinery
   • Package Quantity:4 pieces per pack
   • Load/Performance Characteristics:Supports unlimited stroke, low friction linear movement, up to 80°C operation
   • Additional Feature:Nickel plating corrosion resistance
   • Additional Feature:Supports unlimited stroke
   • Additional Feature:Operates up to 80°C

2. PATIKIL LMK12UU 12mm Linear Ball Bearings (2-Pack)

   Flanged Load Performer

   View Latest Price

   Should you need reliable and precise linear motion for your 3D printer or CNC machine, the PATIKIL LMK12UU 12mm Linear Ball Bearings (2-Pack) offer an excellent solution. These bearings feature a 12mm bore diameter and are made from high-hardness bearing steel, ensuring durability and wear resistance. With double-sided rubber seals, they keep dirt and moisture out while retaining lubrication for extended life. Supporting variable loads up to 42N, they deliver smooth, low-friction movement on cylindrical shafts. Easy to install, these bearings are ideal for mechanical slides, linear guides, and other applications requiring accurate, stable linear motion.

   • Inner Diameter (Bore Size):12mm (0.47 inch)
   • Material:Bearing steel with high hardness
   • Seal Type / Protection:Double-sided rubber seals
   • Application Compatibility:CNC, 3D printers, mechanical slides, food/packaging machinery
   • Package Quantity:2 pieces per pack
   • Load/Performance Characteristics:Dynamic load capacity 42N, static load capacity 61N, smooth precise linear motion
   • Additional Feature:Flange base with holes
   • Additional Feature:Dynamic load capacity 42N
   • Additional Feature:Static load capacity 61N

3. SCS30LUU Linear Motion Ball Bearing Slide Block

   Heavy-Duty Slide Block

   View Latest Price

   Should you need a reliable component for precise linear motion in your printer or mechanical equipment, the SCS30LUU Linear Motion Ball Bearing Slide Block is an excellent choice. It features a 30mm inner diameter and is crafted from durable, high-density aluminum alloy with surface oxidation treatment, ensuring corrosion resistance and long-lasting performance. You’ll appreciate its smooth, low-friction movement and high rigidity, providing stable operation. Installation is straightforward, and it fits seamlessly alongside automation systems and various machinery. Manufactured by DEEPDREAM, this slide block supports your linear rail guide shaft needs with strong load-bearing capacity and easy maintenance.

   • Inner Diameter (Bore Size):30mm (0.24 inch)
   • Material:High-density aluminum alloy
   • Seal Type / Protection:Surface oxidation treatment (corrosion resistant)
   • Application Compatibility:Printer parts, automation systems, various machinery
   • Package Quantity:1 piece per pack
   • Load/Performance Characteristics:High rigidity, smooth low friction movement, strong load-bearing capacity
   • Additional Feature:High-density aluminum alloy
   • Additional Feature:Surface oxidation treatment
   • Additional Feature:Supports linear rail guides

4. Linear Ball Bearings SW8G 1/2″ for CNC Machines

   High-Temperature Resistant

   View Latest Price

   Should you need reliable precision for your CNC machines, the SW8G Linear Ball Bearings with a 1/2-inch inner diameter deliver consistent, smooth motion. Crafted from abrasion-resistant bearing steel and plated for high-temperature use, these bearings maintain high accuracy and strength. Their double-sealed design keeps contaminants out and lubricant in, ensuring long-lasting performance. Designed to fit cylindrical shafts or guideways, they excel in single and 3-axis worktables. Whether you’re working with 3D printers, CNC tools, or packaging machinery, this 1-pack of SW8G bearings provides the durability and precision you require for seamless linear motion.

   • Inner Diameter (Bore Size):1/2 inch (approx. 12.7mm)
   • Material:Bearing steel with plating
   • Seal Type / Protection:Double sealed design
   • Application Compatibility:CNC machine tools, 3D printers, mechanical slides, food/packaging machinery
   • Package Quantity:1 piece per pack
   • Load/Performance Characteristics:High precision, abrasion resistant, suitable for high-temperature conditions
   • Additional Feature:Steel retainer accuracy grade
   • Additional Feature:Plated for high temperature
   • Additional Feature:1-1/4 inch width/length

5. HHIP 2006-1310 Steel C Collared Keyway Bushing 1″

   Keyway Bushing Specialist

   View Latest Price

   Should you need a reliable bushing for precise linear motion applications, the HHIP 2006-1310 Steel C Collared Keyway Bushing, 1″ is a solid choice. Made from durable steel, it features a 3/8″ slot-collared design that guarantees secure fit and smooth operation. Measuring 1 inch in size and tipping the scales at just 7.2 ounces, this bushing balances strength with manageable weight. Its letter designations help identify the body width of the keyway broach and guide slot, making installation straightforward. Ranked #16 in its category, this single-piece component perfectly suits industrial and scientific uses requiring dependable performance.

   • Inner Diameter (Bore Size):1 inch (25.4mm)
   • Material:Steel
   • Seal Type / Protection:Not explicitly mentioned (C collared keyway bushing)
   • Application Compatibility:Industrial applications requiring keyway bushings
   • Package Quantity:1 piece per pack
   • Load/Performance Characteristics:Designed for keyway fit with slot-collared design for secure mounting
   • Additional Feature:3/8 slot-collared design
   • Additional Feature:Letter designations for width
   • Additional Feature:Ranked #16 in category

Factors to Consider When Choosing Linear Motion Bushing Shafts

At the time of choosing linear motion bushing shafts, you need to focus on material durability and load capacity to guarantee reliable performance. Don’t forget to take into account sealing options to protect against contamination and maintain smooth operation. Also, pay attention to size accuracy and how easy the shafts are to maintain or replace.

Material Durability and Strength

Although selecting the right linear motion bushing shaft could seem straightforward, paying close attention to material durability and strength is essential to secure reliable performance. You’ll want shafts made from carbon or bearing steel, as they offer high hardness and excellent wear resistance. Surface treatments like nickel plating or oxidation improve corrosion resistance, helping your shafts last longer in various environments. Choosing materials with strong structural integrity guarantees your motion stays stable, even under heavy or vigorous loads. Additionally, materials that resist abrasion and maintain precision at high temperatures reduce maintenance frequency and simplify replacements. Through focusing on these durability factors, you’ll confirm your linear motion system operates smoothly and reliably for the long haul.

Load Capacity Specifications

Grasping load capacity specifications is essential to choosing the right linear motion bushing shaft for your application. These specs tell you the maximum active and static loads the shaft can handle without failure or excessive wear. Active load capacity matters when the shaft moves under continuous or changing forces, whereas static load capacity is key to preventing deformation while the shaft is stationary. You’ll want to select a bushing whose load capacity exceeds your expected operational loads. This guarantees the shaft lasts longer and performs at its best. Should you ignore load capacities, you risk overloading, leading to premature failure, increased friction, and system inaccuracies. Through comprehending these limits, you can make a smart choice that keeps your linear motion smooth and reliable.

Sealing and Contamination Protection

Because contaminants like dirt and moisture can quickly degrade performance, choosing linear motion bushing shafts with effective sealing is crucial. You’ll want to look for shafts that feature double-sided rubber seals to prevent dirt, water, and other particles from entering and causing premature wear. These seals also help keep internal lubrication in place, extending the bearing’s service life and ensuring smooth, consistent motion even in harsh environments. In case your application faces dust, moisture, or chemical exposure, sealing becomes even more essential to maintain reliability. Plus, well-sealed bushings reduce maintenance needs through cutting down on frequent cleaning and relubrication. Upon selecting bushings with high-quality seals, you’ll maintain precision and minimize friction losses caused by contaminants interfering with the bearing surfaces.

Size and Dimensional Accuracy

Sealing protects your linear motion bushing shafts from contaminants, but selecting the right size and guaranteeing dimensional accuracy is just as vital for reliable performance. You need the bore size to match the shaft diameter precisely, preventing friction and securing smooth movement. Outer diameter and total length must fit your housing tightly to avoid misalignment. Dimensional accuracy prevents eccentric loading, which can cause premature wear and shorten your bushing’s life. Don’t overlook flange dimensions either; their diameter and hole size impact mounting stability and must fit your system’s design. Keeping all measurements consistent guarantees alignment and rigidity, helping your linear motion system maintain accuracy and stability under load. Choosing shafts with tight tolerances pays off in long-lasting, smooth operation.

Maintenance and Replacement Ease

At the time you choose linear motion bushing shafts, considering maintenance and replacement ease can save you time and costs down the line. Opt for bushings with sealed structures to keep dirt and contaminants out, reducing how often you need maintenance. Look for designs featuring double-sided seals to retain lubrication longer, extending service life and cutting down replacement frequency. Choosing components made from durable materials like bearing steel or corrosion-resistant alloys also improves longevity. Make sure the bushings have standard dimensions and straightforward installation steps to simplify upkeep and enable quick, hassle-free swaps as needed. Additionally, selecting low-friction, high-rigidity bushings minimizes wear and tear, easing maintenance demands and prolonging operational life—helping you maintain smooth, precise moves with less downtime.

Application Compatibility and Use

When choosing linear motion bushing shafts, you need to confirm their dimensions and load capacities match the requirements of your specific system. Confirm the bore diameter and length fit the cylindrical shafts or guideways in your setup for peak performance. Select bushings that can support the load and motion demands of your application, whether it’s a CNC machine, 3D printer, or packaging equipment. Factor in environmental conditions like moisture, contaminants, and temperature to decide on sealed designs or corrosion-resistant materials. Check that the stroke capabilities and friction levels align with your device’s operational needs. Finally, verify compatibility with your lubrication type and maintenance schedule to keep your system dependable and extend its service life.

Frequently Asked Questions

How Do Temperature Changes Affect Linear Motion Bushing Shafts?

You’ll find that temperature changes cause expansion or contraction in linear motion bushing shafts, affecting alignment and smoothness. You’ll need to account for thermal variations to maintain precision and avoid binding or increased wear during operation.

Can Linear Motion Bushing Shafts Be Used in Corrosive Environments?

Yes, you can use linear motion bushing shafts in corrosive environments provided you choose materials like stainless steel or apply protective coatings. These options help prevent corrosion and maintain smooth, reliable motion even under harsh conditions.

What Is the Typical Lifespan of a Linear Motion Bushing Shaft?

Consider your linear motion bushing shaft as a marathon runner—typically, it lasts 5 to 10 years with proper care. You’ll want to maintain it regularly to keep it running smoothly and avoid premature wear.

Are There Any Maintenance Tips to Extend Bushing Shaft Performance?

You should regularly clean and lubricate the shaft to prevent debris buildup and reduce friction. Also, check for misalignment and wear often. These steps help you extend your bushing shaft’s performance and lifespan effectively.

How Do Vibration Levels Impact Linear Motion Bushing Shaft Accuracy?

Vibration levels directly reduce your linear motion bushing shaft accuracy through causing misalignment and wear. You’ll notice increased noise and reduced precision, so controlling vibrations helps keep your shaft running smoothly and accurately over time.
