6 Best Zener Diodes Worth Knowing for Reliable Circuits

A zener diode keeps voltage steady in a circuit. It clamps excess voltage and helps protect parts from damage.

Different zener diodes suit different jobs, from quick prototypes to compact designs.

Here are six solid picks for circuits that need steady, reliable control.

More Details on Our Top Picks

1. 1W Zener Diode Assorted Kit (200 Pcs)

   Assorted Starter Kit

   View Latest Price

   Provided you need a handy voltage-reference or shunt-regulator solution for small circuits, this 1W Zener Diode Assorted Kit is a smart pick. You get 200 diodes across 10 values, from 3.3V to 7.5V, with 20 pieces each of 1N4728 through 1N4737. The 1W rating gives you solid low-power performance, while low leakage, low voltage drop, and high efficiency help your designs run cleanly. You can store and identify parts easily in the labeled transparent box. It’s well suited for yourself in the event you’re a professional, hobbyist, or electronics enthusiast.

   • Voltage:3.3V–7.5V
   • Power Rating:1W
   • Quantity:200 pcs
   • Package Type:Storage box
   • Mounting Style:Through-hole
   • Brand:Yosoo Health Gear
   • Additional Feature:10-value assortment
   • Additional Feature:Labeled storage box
   • Additional Feature:Low leakage design

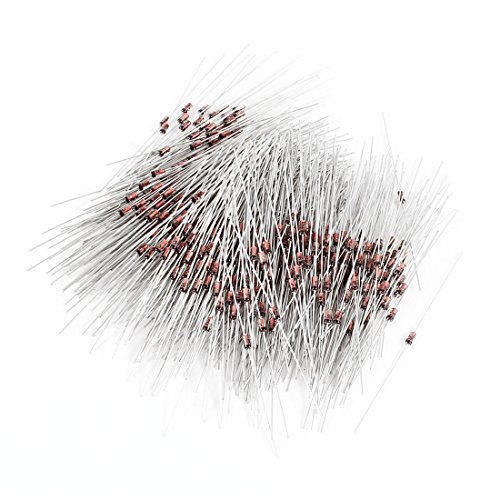

2. Aexit 500 Pcs 3.6V Zener Schottky Diodes

   Bulk Budget Pick

   View Latest Price

   Should you need a bulk pack of reliable low-voltage parts for prototyping, repair work, or classroom projects, the Aexit 500-piece set of 3.6V Zener Schottky diodes is a practical pick. You get DIP parts with a 3.6V Zener voltage, ±5% tolerance, and a 1/2W rating, so you can handle modest regulation tasks with confidence. The pack includes about 500 pieces, with a ±2% quantity variance, and the small 0.36 × 0.18 cm body fits compact layouts. Their 6.0 cm leads help you work easily, and the 53 g package stays lightweight.

   • Voltage:3.6V
   • Power Rating:1/2W
   • Quantity:500 pcs
   • Package Type:DIP
   • Mounting Style:Through-hole
   • Brand:Aexit
   • Additional Feature:±5% tolerance
   • Additional Feature:0.36 × 0.18 cm body
   • Additional Feature:500±2% count

3. 20PCS 5W Zener Diodes Case17 (1N5333B)

   High-Power Option

   View Latest Price

   Should you need a rugged through-hole regulator for repairs, prototypes, or simple power-control jobs, the 20PCS 5W Zener Diodes Case17 set centered on the 1N5333B is a smart fit. You get a 3.3V–12V series, including 1N5333B, 1N5349B, and nearby values for flexible builds. Each diode handles 5W, and the CASE17 body solders easily in standard layouts. You’ll appreciate the clear cathode and anode marking, new-condition parts, and compact 0.39-inch sizing. Use them whenever you desire dependable voltage clamping, stable operation, and an easy replacement path for common circuit fixes.

   • Voltage:3.3V–12V
   • Power Rating:5W
   • Quantity:20 pcs
   • Package Type:Through-hole
   • Mounting Style:Through-hole
   • Brand:ReniCharge
   • Additional Feature:3.3V–12V series
   • Additional Feature:CASE17 package
   • Additional Feature:Clear cathode/anode marking

4. Aexit 5A3 1/2 Watt Dipped Zener Diodes

   Reliable Value

   View Latest Price

   The Aexit 5A3 1/2 Watt Dipped Zener Diodes are a solid pick should you need a compact through-hole voltage reference for small circuits, especially whenever a 4.5–4.7 V shunt regulator fits your design. You get a 1/2 W rating, so you can use it for modest regulation tasks without adding bulk. Its DIP, axial-leaded body makes hand soldering easy, and the tiny package helps whenever space matters. Aexit sells it as a 500-piece pack, so you’ll have plenty for prototyping, repairs, or low-power voltage reference builds.

   • Voltage:4.5V–4.7V
   • Power Rating:1/2W
   • Quantity:500 pcs
   • Package Type:DIP
   • Mounting Style:Through-hole
   • Brand:Aexit
   • Additional Feature:4.5–4.7V rating
   • Additional Feature:Shunt regulator use
   • Additional Feature:Axial leaded design

5. Aexit 120 Pcs 1206 SMD Zener Diodes 13V

   SMD Choice

   View Latest Price

   Aexit’s 120-piece 1206 SMD Zener diode set is a smart pick should you need a compact 13V voltage regulator for small electronics projects, repairs, or prototyping. You get 120 surface-mount parts in a tiny 1206 package, and each diode handles 0.5W, which suits low-power control and reference circuits. Because the set weighs only 5 g, it’s easy to store in your bench kit. Should you prefer SMD work over through-hole parts, this Aexit option gives you plenty of spares. Amazon’s 30-day return policy adds extra peace of mind.

   • Voltage:13V
   • Power Rating:1/2W
   • Quantity:120 pcs
   • Package Type:1206 SMD
   • Mounting Style:SMD
   • Brand:Aexit
   • Additional Feature:1206 SMD package
   • Additional Feature:13V regulation
   • Additional Feature:5g lightweight pack

6. Aexit 80 Pcs Zener Diodes 7.9V-8.3V 2

   Precision Pick

   View Latest Price

   Should you need a compact batch of low-power voltage regulators for bench work, repairs, or small electronics builds, the Aexit HZ9A2 package fits the bill with 80 axial DO-35 Zener diodes rated at 7.9V–8.3V and 1/2W, giving you a practical 2% tolerance option for steady 8V-style regulation. You get a simple through-hole part with 65 x 2 mm sizing and a light 15 g pack, so handling stays easy. Use them where you want dependable clamping, reference points, or simple protection without overcomplicating your circuit design.

   • Voltage:7.9V–8.3V
   • Power Rating:1/2W
   • Quantity:80 pcs
   • Package Type:DO-35
   • Mounting Style:Axial lead
   • Brand:Aexit
   • Additional Feature:2% tolerance
   • Additional Feature:DO-35 package
   • Additional Feature:65mm leaded body

Factors to Consider When Choosing Zener Diodes

Upon choosing a Zener diode, you’ll want to match its Zener voltage rating to your circuit’s needs and make sure it can handle the required power dissipation. You should also check the package type and tolerance level so the part fits your layout and gives you the accuracy you need. Your circuit application will guide the final choice, since protection, regulation, and reference roles can call for different parts.

Zener Voltage Rating

Start through choosing a Zener voltage, Vz, that matches the regulated voltage you want, since the diode will clamp near that value in reverse breakdown. You should pick Vz close to your target so the circuit regulates where you expect. Then check the tolerance, often ±5% or ±2%, because the actual breakdown can shift enough to matter. Make sure Vz stays above any normal signal swings or forward drops, or the diode might conduct if it shouldn’t. Also, account for temperature coefficient: low-voltage Zeners below about 5.6 V usually drift negative, while higher-voltage parts drift positive. Finally, confirm your supply and series resistor can drive the diode into breakdown consistently, so you get stable regulation with the chosen rating.

Power Dissipation

Power dissipation is a key check whenever you choose a Zener diode, because the diode must handle the heat created through its operating current. You should calculate Pd as Vz × Iz, then pick a diode whose power rating exceeds that value. Keep the operating point below the maximum continuous dissipation rating, and aim for only 50–70% of rated power for long-term reliability. That margin helps you survive temperature rise, supply swings, and surge current. In the event your calculated dissipation gets close to the limit, you’ll need better thermal management or a device with a higher power rating. Also, treat pulse dissipation separately: a diode can handle short spikes above steady-state limits only provided its specified pulse energy and duration allow it.

Package Type

Beyond dissipation alone, the package you choose shapes how well a Zener diode fits your circuit and handles heat. You’ll often pick through-hole axial parts like DO-35 or CASE17 whenever you want easy hand-soldering, sturdy leads, and better mechanical strength, especially for prototyping or 1W-and-up devices. In case your PCB is compact, an SMD package such as 1206 saves space, cuts parasitic inductance, and suits automated assembly and higher-frequency layouts. Just keep in mind that smaller surface-mount parts usually shed less heat than larger case styles. For either type, check the thermal path into your board: use copper area, vias, and enough airflow so the diode stays within its operating temperature and can carry the current you need.

Tolerance Level

Tolerance tells you how far the actual Zener voltage can drift from its nominal value, so should you need a precise reference or tight regulation, you should choose a low-tolerance part like ±2% or better. Tighter tolerance keeps the voltage closer to the datasheet value and reduces the need for trimming. For simple clamping or rough regulation, you can use ±5% or ±10% parts when a small error won’t hurt and cost matters more. Keep in mind that tolerance is specified at the test current and temperature, so your in-circuit voltage can still move with operating current and temperature changes. Whenever you need matched behavior across several diodes, pick the same tolerance class and, provided possible, the same production lot for better consistency.

Circuit Application

In circuit design, you need to match the Zener diode to the job: pick a Zener voltage close to the reference or clamp level you want, make sure its power rating can handle the worst-case (V_Z times I_Z), and check that its tolerance and temperature coefficient fit your accuracy needs. For low-voltage references, you’ll often choose parts around 3.3 to 7.5 V so they conduct in breakdown right where you need them. In case your circuit draws more current or sees higher stress, step up to 1 W or 5 W devices; for lighter loads, 0.5 W or less can be enough. Also, confirm the knee current and dynamic resistance, because low Zener impedance helps keep voltage stable as load and supply change.

Leaded Or SMD

Upon selecting a Zener diode, package style matters as much as voltage and power. Should you’re hand-building or need easy field repair, choose leaded through-hole parts. Their axial or radial leads make soldering straightforward, and their larger bodies usually tolerate more continuous power and simplify heat sinking. In case you’re designing a compact PCB or using automated assembly, SMD packages like 1206 or SOD-123 save space and fit reflow or hot-air workflows. They also cut lead inductance, which helps in fast or noise-sensitive circuits. Keep in mind that SMD parts depend on copper area and vias to spread heat, while leaded parts can handle thermal stress more easily. Match the package to your manufacturing method, board space, and electrical needs, and you’ll avoid layout headaches later.

Quantity Needed

How many Zener diodes you buy should match what you actually need, not just the lowest price tag. Start by counting each distinct voltage your projects call for, then add extras for testing and the inevitable failures. A 10–20% buffer usually works well. Assuming you prototype or build hobby circuits, keep several of each voltage on hand—often 10 to 50 pieces—so you can experiment and swap parts without reordering. For production, multiply units per diodes per unit, then add a 5–15% margin for yield losses and field replacements. Also consider storage and handling: purchase in quantities that fit your organization system. Bigger lots cut per-piece cost, but only provided you’ll use them soon enough.

Operating Conditions

Once you know how many Zener diodes to keep on hand, the next step is choosing parts that will behave correctly in your circuit. You should pick a Zener voltage, Vz, that matches your reference or clamp point under real operating conditions, because the actual voltage shifts with tolerance and test current. Check the power rating so it exceeds the worst-case Zener current times Vz, with margin, or the diode might overheat. At the operating current, review knee behavior and variable resistance, Zz, to judge regulation and load-induced variation. Also confirm ambient temperature and thermal resistance so junction temperature stays safe. Should you need low leakage or precision, account for reverse and forward leakage at your expected voltages and temperatures.

Frequently Asked Questions

How Do Temperature Changes Affect Zener Diode Regulation?

Temperature changes alter a Zener diode’s breakdown voltage, which shifts the regulated output. Low voltage Zeners usually drift more as they warm or cool. For better stability, pick a diode whose temperature coefficient matches your target voltage.

Can Zener Diodes Protect Circuits From Reverse Polarity?

Yes, a Zener diode can be used for reverse polarity protection, but it must be paired with a properly sized series resistor or fuse. It limits the reverse voltage, but by itself it cannot safely absorb high fault current.

What Causes a Zener Diode to Fail in Practice?

Zener diodes often fail when too much power raises the junction temperature beyond safe limits, when surge current exceeds the device’s pulse rating, when a reverse spike pushes the voltage past breakdown, or when poor solder joints create hot spots and mechanical stress. Repeated overcurrent that exceeds the diode’s power dissipation limit can also shorten its life.

How Is Zener Voltage Measured Accurately in a Circuit?

Measure the diode in reverse breakdown by feeding it through a series resistor and reading the voltage across the diode with a high impedance meter at the specified test current. For accurate results, keep the temperature stable.

Are Zener Diodes Suitable for Surge Suppression?

Yes, Zener diodes can handle modest surge suppression, but they are not a strong defense against large or very fast spikes. For tougher surges, use TVS diodes and series resistors to improve protection.

Conclusion

You’re the builder at the gate, and each zener is a different guardian: the 1W kit for quick choices, the 5W CASE17 for heavy burdens, the 1206 parts for tight spaces, and the matched, low-power types for precise watchkeeping. Pick the one that fits your circuit’s story, or the whole kingdom can wobble. Whenever you match voltage, tolerance, package, and heat handling, you don’t just protect your design—you give it the steady hand it needs.
